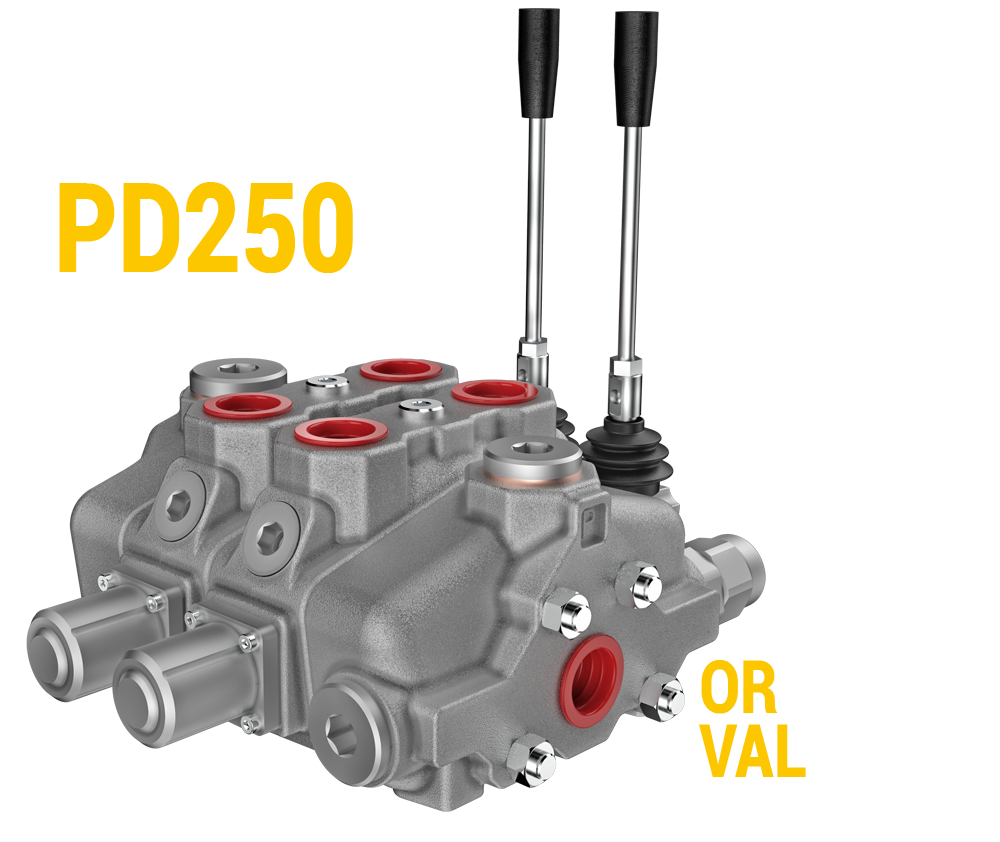

ORV-PD250

ORV-PD250

  • Kategori :: Sectional valve
  • Product code :: PD250
  • Labels ::
  • Stock :: In stock
Nominal Flow Rating Displacement 250 l/min 65 U.S.G.P.M
Maximum Working Pressure (Series Circuit) 210 Bar 3050 PSI
Maximum Working Pressure (Parallel Circuit) 315 Bar 4600 PSI
Max Back Pressure 25 Bar 360 PSI
Oil Temperature with NBR Seals -20 to 80 C˚ -4 to 176 F ˚
Oil Temperature with FPM (Viton) Seals -20 to 100 C° -4 to 212 F°
Number of Spools 1 to 12
Tie Rod Tightening Torgue 50 Nm 36,88 lbft
