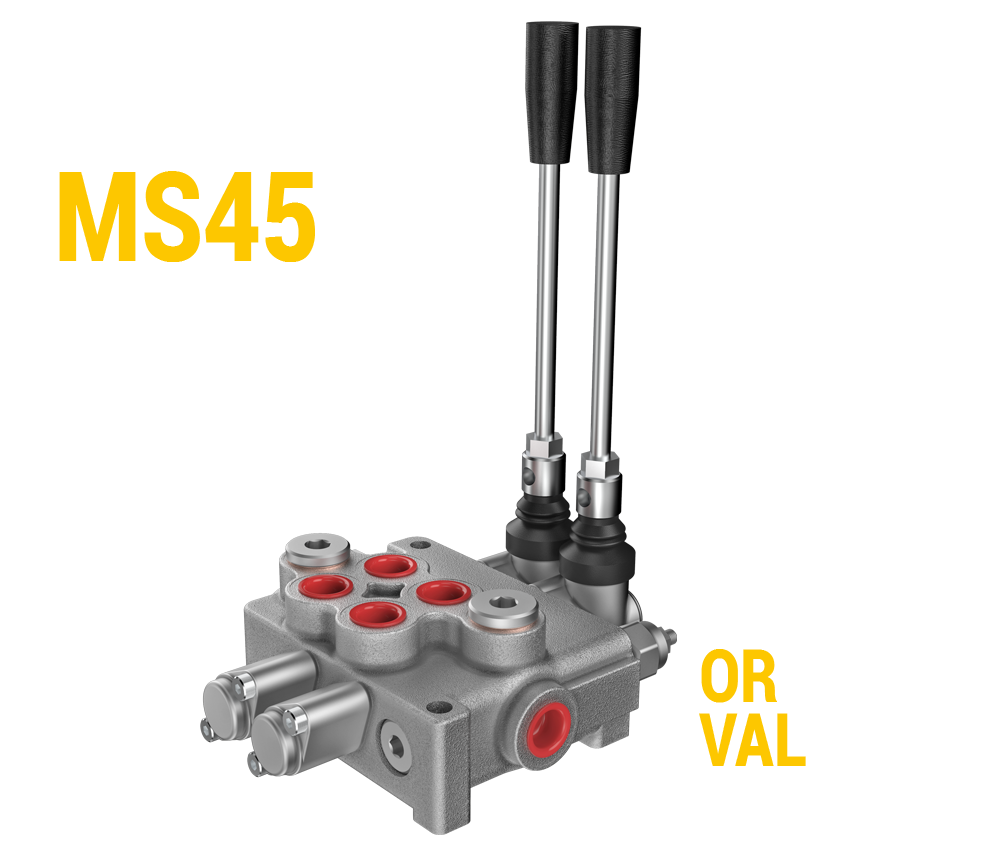

ORV-MS45

ORV-MS45

Nominal Flow Rating Displacement 45 l/min 12 U.S.G.P.M
Maximum Working Pressure (Parallel Circuit) 315 Bar 4600 PSI
Maximum Working Pressure (Series Circuit) 250 Bar 3600 PSI
Max Back Pressure 25 Bar 360 PSI
Oil Temperature with NBR Seals -20 to 80 C˚ -4 to 176 F ˚
Oil Temperature with FPM (Viton) Seals -20 to 100 C° -4 to 212 F°
Number of Spools 1 to 7
