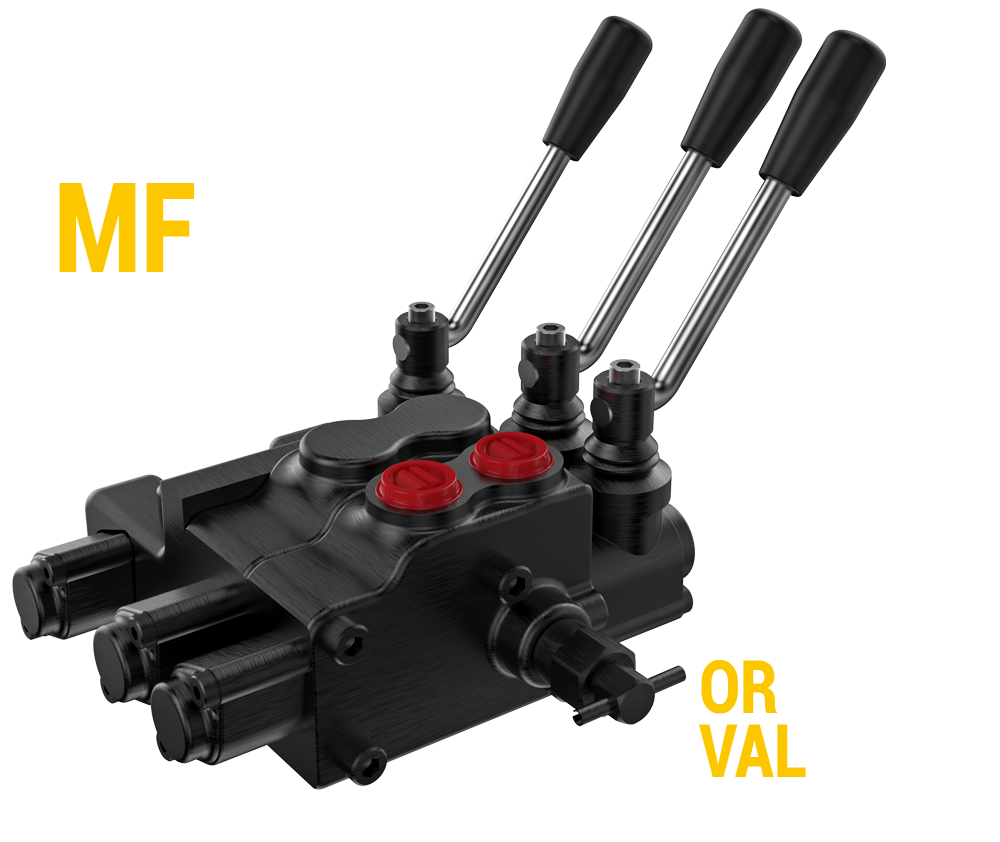

ORV-MF

ORV-MF

Nominal Flow Rating Displacement 45 l/min 12 U.S.G.P.M
Maximum Working Pressure (Series Circuit) 315 Bar 4600 PSI
Max Back Pressure 25 Bar 360 PSI
Oil Temperature with NBR Seals -20 to 80 C° -4 to 176 F°
Oil Temperature with FPM (Viton) Seals -20 to 100 C˚ -4 to 212 F ˚
Tie Rod Tightening Torgue 30 Nm 22 lbft
ORV-MF Outlet With 2 Port
ORV-MF Outlet With 2 Port+Hydraulic
ORV-MF Outlet With 4 Port

ORV-MF Outlet With 4 Port+Hydraulic
ORV-MF Outlet With 6 Port
