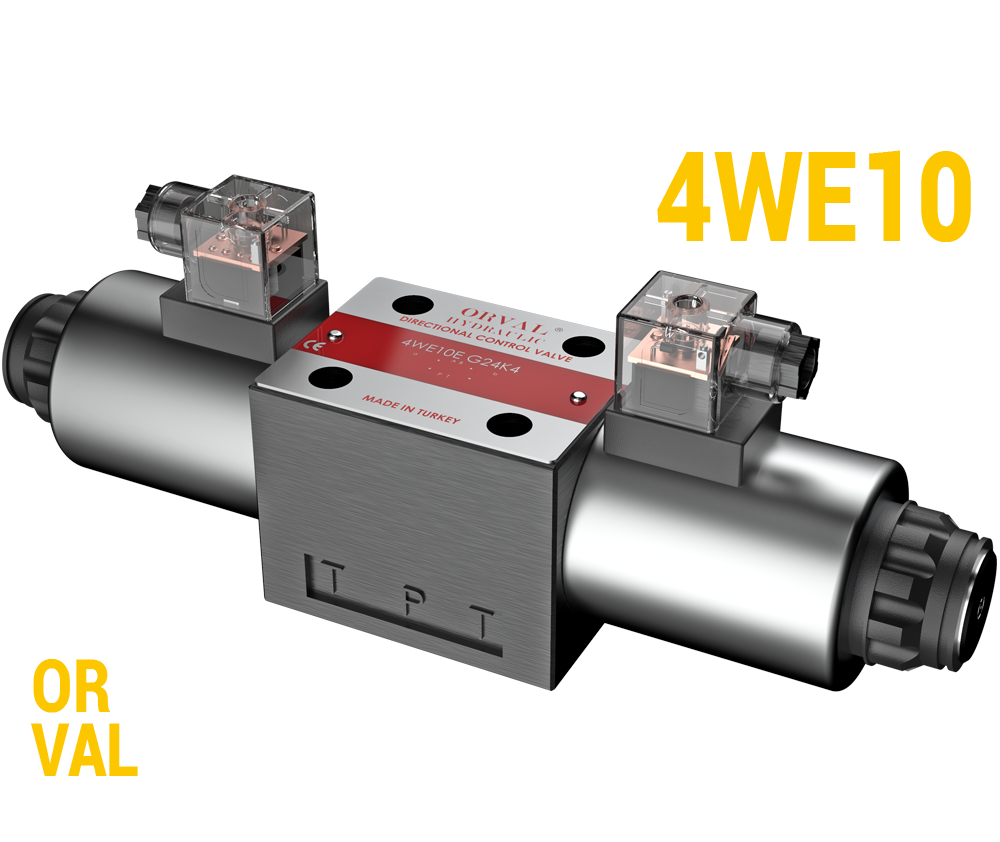

ORV-4WE10

ORV-4WE10

Nominal Flow Rating Displacement 100 l/min 27 U.S.G.P.M
Maximum Working Pressure 315 Bar 4600 PSI
Hydraulic Oil ISO VG 32,46,68
Oil Temperature with NBR Seals -15 to 70 C° -4 to 176 F°
Oil Temperature with FPM (Viton) Seals -20 to 100 C˚ -4 to 212 F ˚
Degree of Protection to DIN 40050 and IEP IP 65
Internal Leakage
(at 100 Bar (1500 PSI),
40 C° (110 F°), 46 cSt - A(B)-T)
2 cm³/min 0,12 in3/min
Mounting Pattern ISO 4401-05
